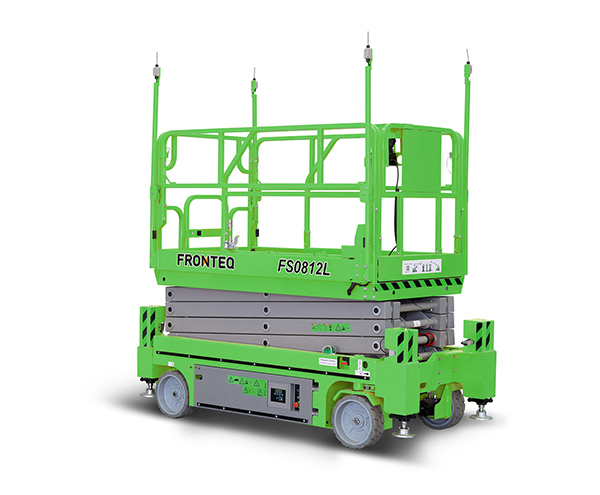

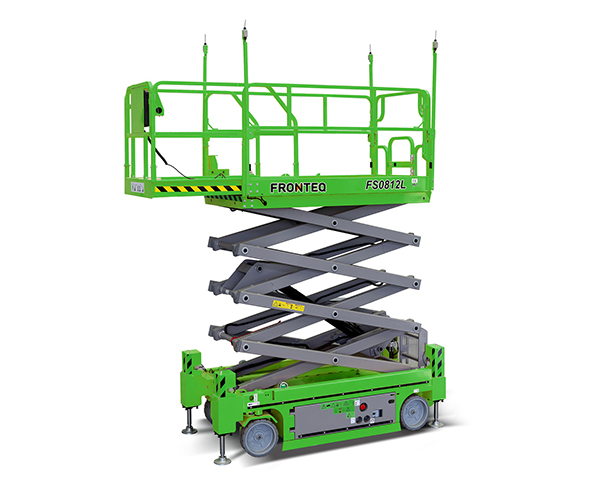

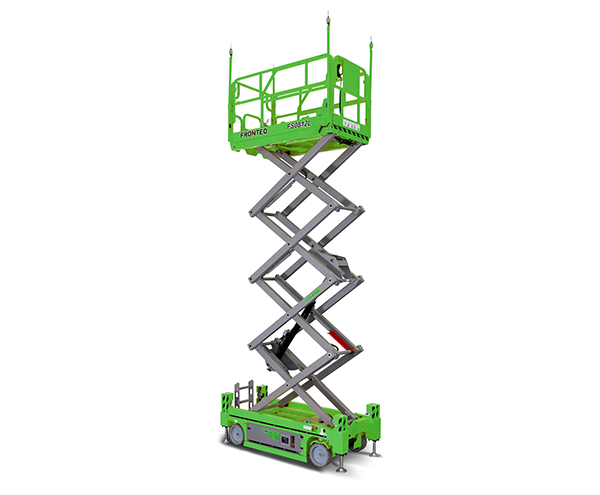

FS0812L

SCISSOR LIFT (Slab | Compact electric motor drive)

This range is designed for lifting people to carry out work at height in complete safety, the excellent performance lets operators easily manoeuvre around various worksites with firm, level surfaces. Equipped with maintenance-free AGM battery, an intelligent self-diagnostic system for quick troubleshooting, and swing-out component trays, which have fewer scheduled services and greatly reduce maintenance costs.

9.9 m

Max. Working Height

1.18 m

Overall Width

460kg

Lift Capacity

    SCISSOR LIFTWheeled Outtrigger Scissor Lift

    Model

    FS0812L

    Dimensions

    Max. Working Height9.9 m
    A   Max. Platform Height7.9 m
    B   Overall Length (Stowed)2.72 m
    C   Overall Width1.18 m
    D   Overall Height (Guardrails unfolded)2.31 m
    Overall Height (Guardrails folded)1.8 m
    Platform Length (Stowed)2.25m
    E    Max Horizontal Reach (Extension)0.9 m
    Platform Width1.58m

    Weight

    Overall Weight2706 kg

    Performance

    Max. Platform Occupancy2
    Lift Capacity460 kg
    Lift Capacity (Extension deck)120 kg
    Driving HeightFull height
    Gradealility25%
    Turning Radius (Inside)0.95m
    Turning Radius (Outside)3.13m
    Maximum Working Inclination Angle1.5°/3°

    Power

    Battery4×6V/220Ah

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
