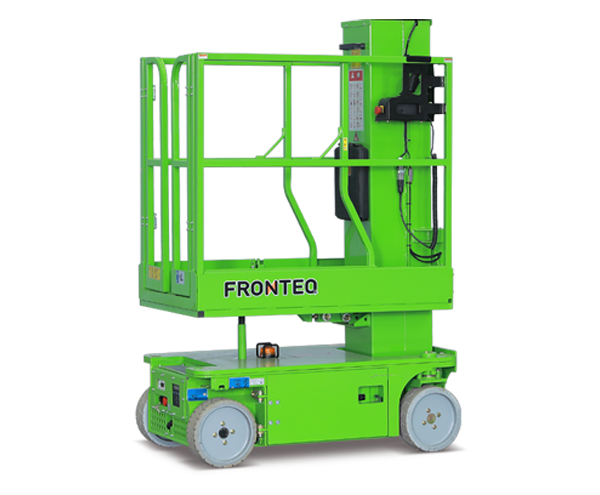

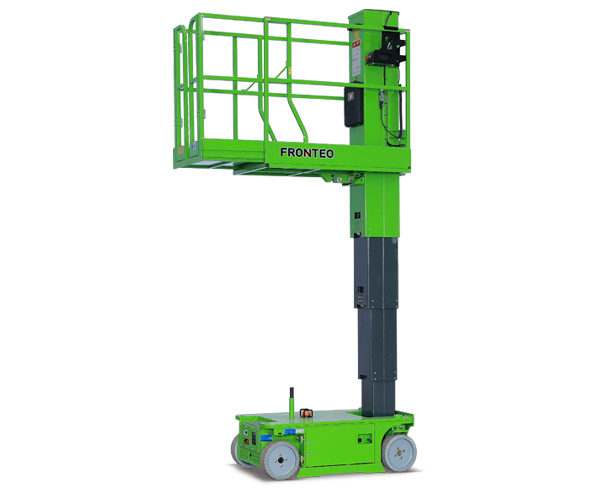

FMWP-3.6 / FMWP-4.8 / FMWP-6.0

VERTICAL LIFT (Self-propelled | Mast)

This range is designed with the concept of less noise, zero-emission, no pollution, energy saving,  flexible operation and environmentally friendly. The compact structure makes it easy to set up and pass through narrow aisles and doorways and is suitable for warehouses, supermarkets, hotels, airports and other narrow-space environments.

5.6 ~ 8.0 m

Max. Working Height

0.76 ~ 0.81 m

Overall Width

159 ~ 227kg

Lift Capacity

    VERTICAL LIFT Self-propelled  |  Mast

    Model

    FMWP-3.6

    FMWP-4.8

    FMWP-6.0

    Platfrom

    Max. Working Height5.6m6.8m8m
    Max. Platform Height3.6m4.8m6m
    Lift Capacity227kg227kg159kg
    Lift Capacity (Extension deck)114kg114kg114kg
    Max. Occupants111

    Dimensions

    Overall Length1.36m1.36m1.36m
    Overall Width0.76m0.76m0.81m
    Overall Height  (Stowed)1.7m1.98m1.98m
    Platform Dimension1.3m×0.7m1.3m×0.7m1.3m×0.7m
    Max. Horizontal Reach (Extension)0.51m0.51m0.51m
    Wheelbase1.04m1.04m1.04m

    Performance

    Turning Radius0.3m0.3m0.3m
    Driving speed (Stowed)4km/h4km/h4km/h
    Driving speed (Raised)1.1km/h1.1km/h1.1km/h
    Rise/Lower Speed31/32sec41.5/42sec52/53sec
    Gradeability25%25%25%

    Power

    Driving Wheel DimensionsΦ305×100mmΦ305×100mmΦ305×100mm
    Driving Motor2×24VDC/0.5kW2×24VDC/0.5kW2×24VDC/0.5kW
    Lifting Motor24VDC/1.2kW24VDC/1.2kW24VDC/1.2kW
    Battery2×12V/100Ah2×12V/100Ah2×12V/100Ah
    Charger24V/15A24V/15A24V/15A

    Weight

    Self- Weight810kg980kg1060kg

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
