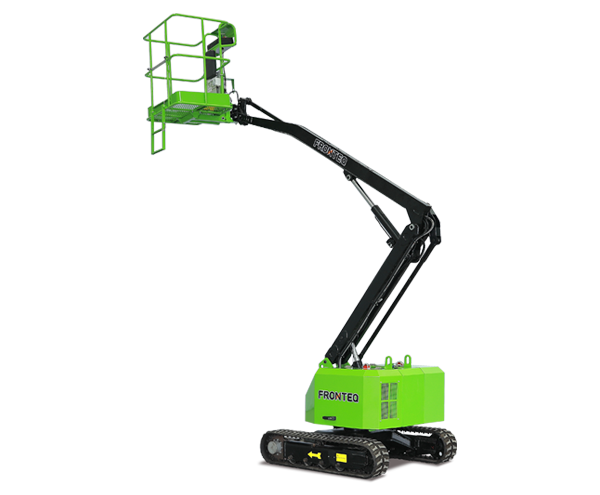

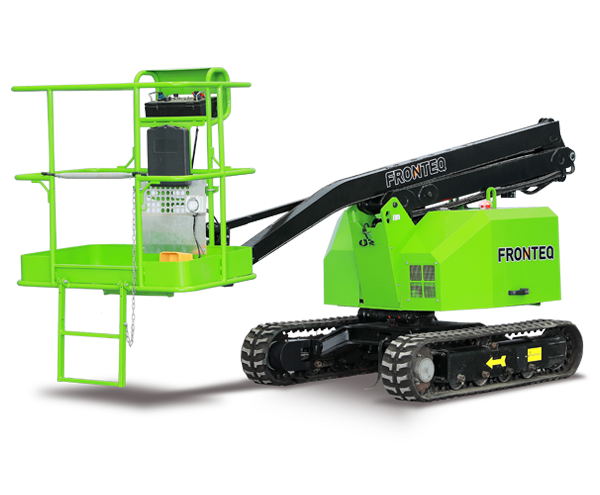

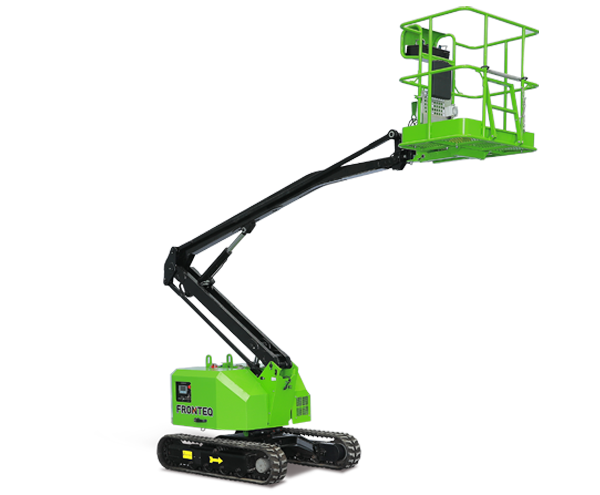

FBZ-6T

BOOM LIFT (Articulated | Crawler)

The articulated crawler boom lifts are equipped with a low-emission and low noise engine, designed for zero tail swing. This range has flexibility and compact size with rubber tracks to make it easy to access through rough ground conditions, climb slopes, and to be transported by trailer. The lightweight offers low ground pressure for smooth, fast and safe passage through different worksite applications. It’s ideal for a variety of jobs both indoors and outdoors.

8.3 m

Max. Working Height

1.54 m

Overall Width

150kg

Lift Capacity

    BOOM LIFTArticulated  |  Crawler

    Model

    FBZ-6T

    Dimension

    Max. Working Height8.3m
    Max. Platform Height6.3m
    Max. Horizontal Outreach4.2m
    Max. Up and Over Clearance3.1m
    Platform Dimensions(L×W×H)1.18 × 0.78 × 1.1m
    A  Length-Stowed4.95m
    B  Width-Stowed1.54m
    C  Height-Stowed2.1m
    Shoe Width250×72

    Weight

    Overall Weight2500kg

    Performance

    Max. Platform Occupancy (In door)1
    Max. Platform Occupancy (Out door)1
    Platform Capacity150kg
    Platform Turning Angle (Left / Right)80°/80°
    Drive Speed-Stowed0-1.6 km/h
    Drive Speed-Raised0-0.8 km/h
    Gradeability25%
    Turntable Rotation355° non-continuous
    Turning Radius-Inside0
    Turning Radius-Outside0
    Turntable Tailswing-Raised0
    Turntable Tailswing-Stowed0
    ControlProportional

    Power

    Engine ModelKubota D722-E3B
    TypeEU Stage Ⅲ
    Fuel tank30L
    Hydraulic oil tank30L

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
