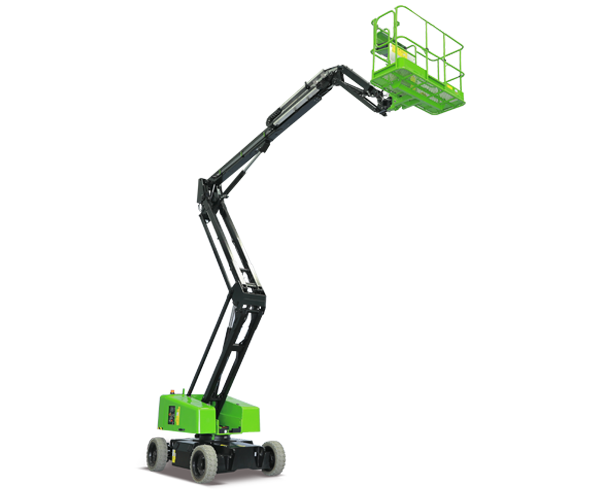

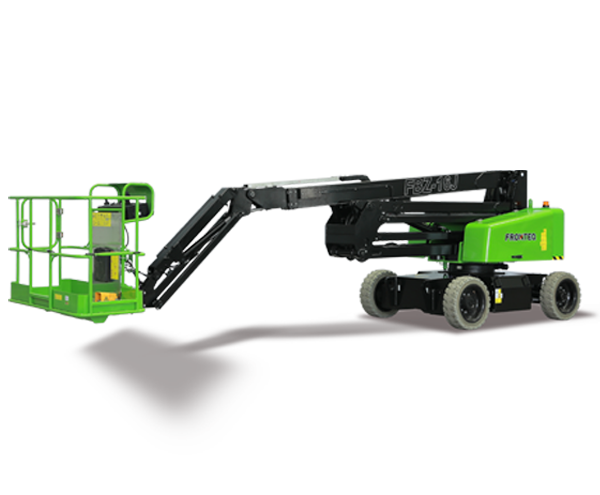

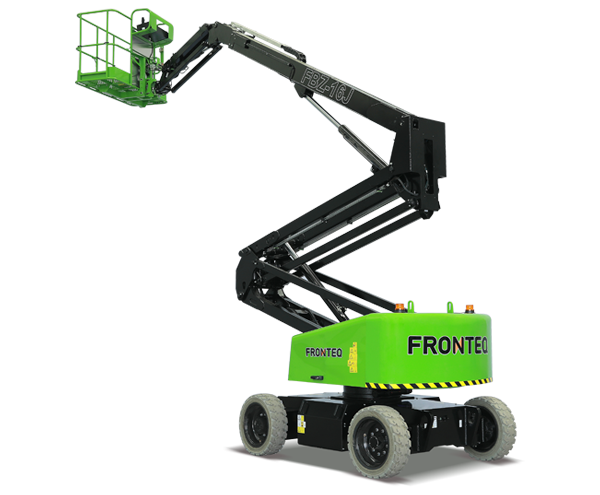

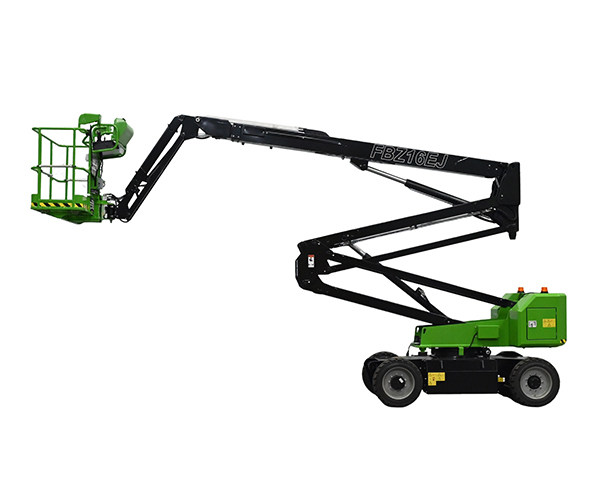

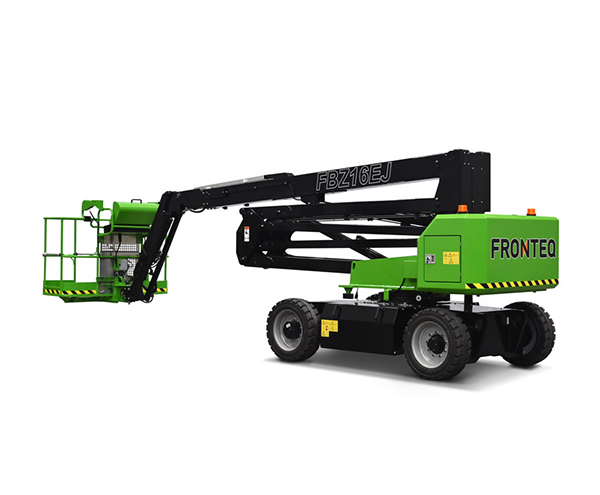

BOOM LIFT (Articulated | 2 Wheel drive)
The articulated boom lift is available with 2-wheel drive configuration. This range is designed tough for the rental industry, with robust and reliable performance which easily reaches up and out-manoeuvre various obstacles. Accurate and efficient travelling AC drive system to provide strong power and smooth control. The products are simple to operate and have easy maintenance, boasting high-level safety and reliability.
Max. Working Height
Overall Width
Lift Capacity
BOOM LIFTArticulated | 2 Wheel drive | |
Model | FBZ16J |
Dimension | |
Max. Working Height | 17.7m |
Max. Platform Height | 15.7m |
Max. Horizontal Outreach | 9.3m |
Max. Up and Over Clearance | 7.8m |
Platform Dimensions(L×W×H) | 1.83 × 0.76 × 1.1m |
A Length-Stowed | 7.4m |
B Width-Stowed | 1.89m |
C Height-Stowed | 2.23m |
Weight | |
Overall Weight | 7385kg |
Performance | |
Max. Platform Occupancy (In door) | 2 |
Max. Platform Occupancy (Out door) | 2 |
Platform Capacity | 250kg |
Gradeability | 30% |
Platform Rotation | 160° |
Turntable Rotation | 355° non-continuous |
Turning Radius-Inside | 1.8m |
Turning Radius-Outside | 4.27m |
Turntable Tailswing-Raised | 0 m |
Turntable Tailswing-Stowed | 0 m |
Drive | 2WD |
Tyres Spec/Type | 240/55-17.5 /Foam-filled |
Drive system | AC Drive motor |
Power | |
Power Source | 8X6V/445Ah AGM Battery |
Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
Foot pedal switch
Emergency stop
Emergency lowering
Overload protection
Tilt level protection
Motion alarm
Flashing beacons
Horn
Drive at full height
Hour meter
Automatic braking system
Fault diagnosis system
Charger protection
Proportional control
Self-lubrication bearing
Air line to platform
AC power on platform
Platform LED work light
Customize color
Air switch
Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
