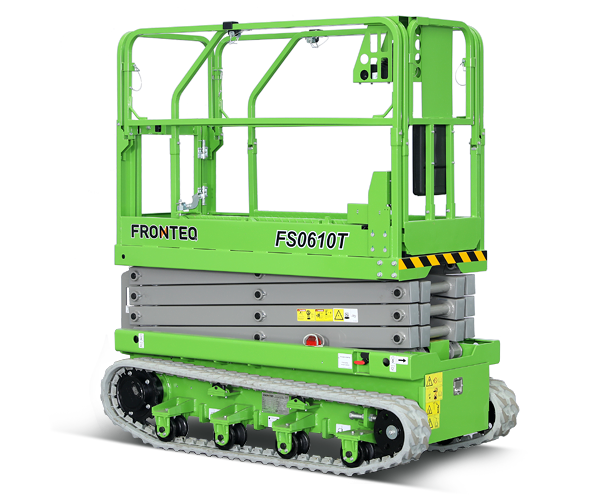

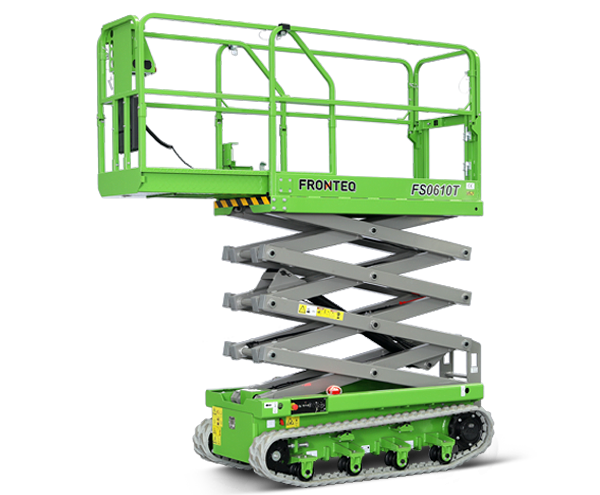

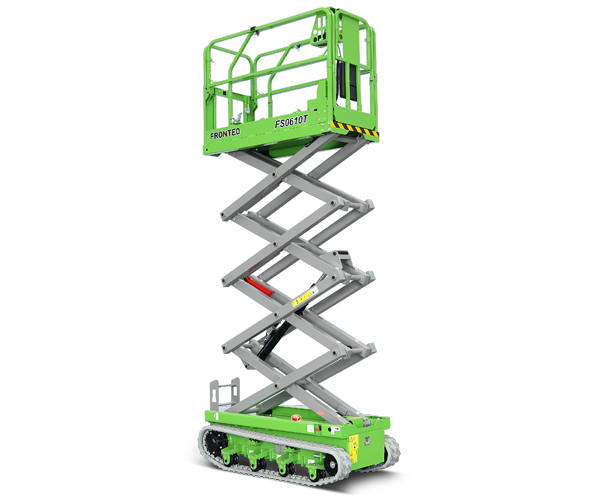

FS0610T

SCISSOR LIFT (Crawler | Without outriggers)

The crawler scissor lift is without outriggers configuration. This range is designed according to the concept more than traditional, to allow it to work on tough sites, thus overcoming the restriction that aerial work platforms only can operate on slab ground. Equipped with AC drive motors that provide high efficiency and long running time, the maintenance-free AGM battery offers clean and quiet battery power for ultimate access flexibility. Fronteq crawler scissor lifts are setting a new standard within the industry.


8.0 m

Max. Working Height

0.98 m

Overall Width

200kg

Lift Capacity

    SCISSOR LIFTCrawler    |   Without outriggers

    Model

    FS0610T

    Dimensions

    Max. Working Height8.0 m
    A   Max. Platform Height6.0 m
    B   Overall Length (Stowed)2.05 m
    C   Overall Width0.98 m
    D   Overall Height (Guardrails unfolded)2.14 m
    Overall Height (Guardrails folded)1.67 m
    Platform Length (Stowed)1.80 m
    E    Max Horizontal Reach (Extension)0.89 m
    Platform Width0.78 m

    Weight

    Overall Weight1640 kg

    Performance

    Max. Platform Occupancy (In door)2
    Max. Platform Occupancy (Out door)1
    Lift Capacity200 kg
    Lift Capacity (Extension deck)120 kg
    Driving HeightNo driving when lifting
    Gradealility30%
    Turning Radius (Inside)0
    Turning Radius (Outside)0
    Maximum Working Inclination Angle1.5°/2°

    Power

    Battery24V DC(4*12V115Ah)

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
