SCISSOR LIFTRough Terrain | Electric Model Drive |

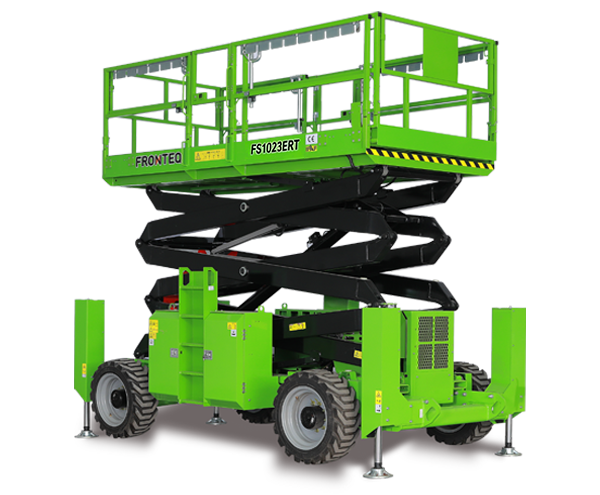

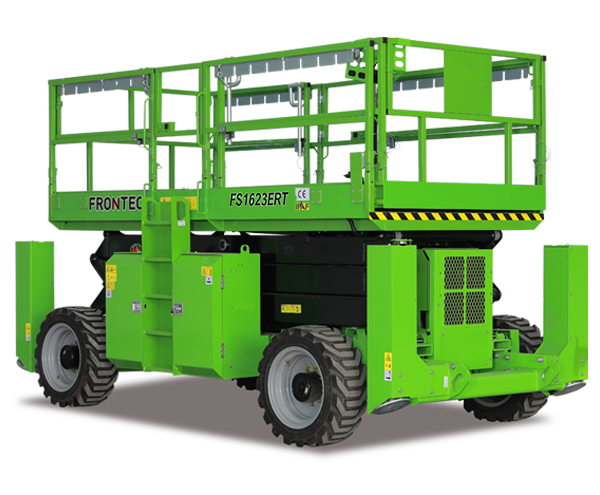

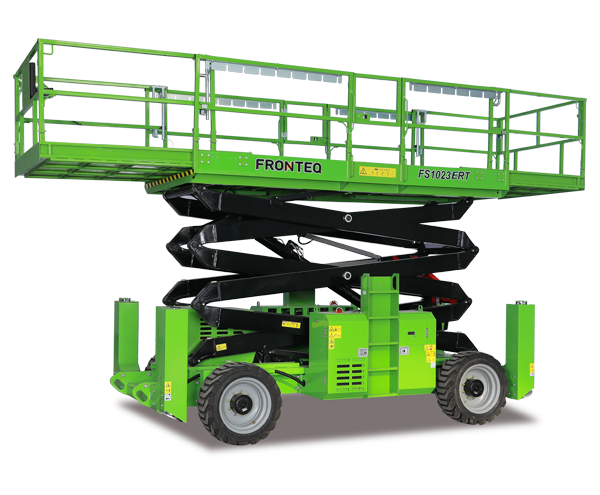

Model | FS1023ERT | FS1323ERT | FS1623ERT |
Dimensions |
| Max. Working Height | 12m | 15m | 18m |
| Max. Platform Height | 10m | 13m | 16m |
| Overall Length - with outriggers | 4.88m | 4.88m | 4.88m |
| Overall Width | 2.29m | 2.29m | 2.29m |
| Overall Height - Guardrails unfolded | 3.31m | 3.31m | 3.19m |
| Overall Height - Guardrails folded | 2.06m | 2.28m | 2.42m |
| Platform Extension Size - Front extension | 1.40m | 1.40m | 1.40m |
| Platform Extension Size - Rear extension | 1.10m | 1.10m | 1.10m |
| Platform Width | 1.74m | 1.74m | 1.74m |
| Wheelbase | 2.86m | 2.86m | 2.86m |
| Ground Clearance | 0.38m | 0.38m | 0.38m |
Weight |
| Overall Weight | 7900kg | 8400kg | 8850kg |
Performance |
| Max. Platform Occupancy | 4 | 4 | 4 |
| Lift Capacity | 680kg | 680kg | 680kg |
| Lift Capacity (Extension deck) | 227kg | 227kg | 227kg |
| Driving Height | Full height | Full height | 9m |
| Driving Speed (Stowed) | 0-5km/h | 0-5km/h | 0-6km/h |
| Driving Speed (Raised) | 0-0.8km/h | 0-0.8km/h | 0-1.1km/h |
| Gradeability | 40% | 40% | 40% |
| Turning Radius (Inside) | 2.35m | 2.35m | 2.35m |
| Turning Radius (Outside) | 5.33m | 5.33m | 5.33m |
| Rise/Lower Speed (s) | 60/80 | 60/80 | 60/80 |
| Controls | Proportional control | Proportional control | Proportional control |
| Drive | 4WD | 4WD | 2WD |
| Tire | 319mm X 842mm | 319mm X 842mm | 319mm X 842mm |
Power |
| Battery | 80V/320Ah | 80V/320Ah | 80V/280Ah |
| Charge | 80V40A | 80V40A | 90-240VAC/40A |
Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
Standard
4x4 Wheel Drive
Oscillating system
Emergency stop
Auto-leveling outriggers
Emergency lowering
Overload protection
Lowering protection
Descent protection alarm
Tilt level protection
Safety arm
Motion alarm
Dual flashing beacons
Horn
Drive at full height
Solid tyres
Hour meter
Automatic braking system
Fault diagnosis system
Proportional control
Foldable guardrail
Self-lubrication bearing
Option
Overhead anti-collision device
Air line to platform
Pipe cradle pair
AC power on platform
Platform LED work light
Customize color
Air switch
