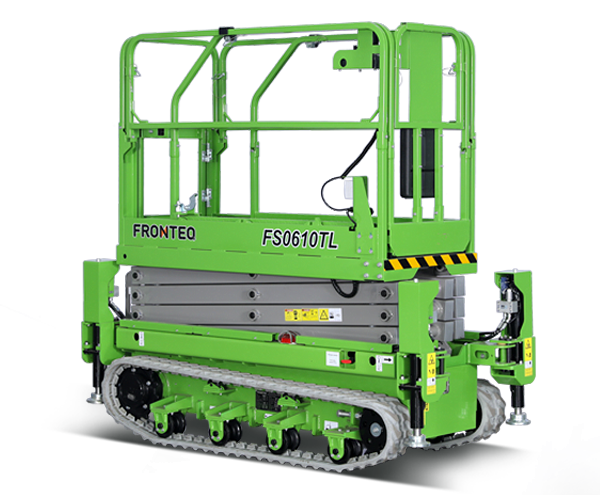

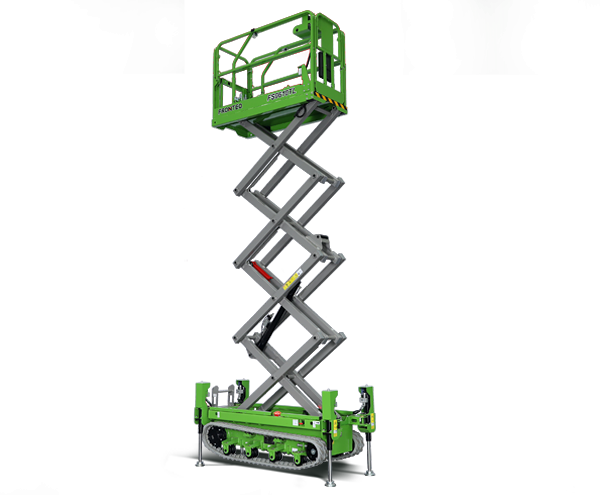

FS0610TL

SCISSOR LIFT (Crawler | With outriggers )

The crawler scissor lift is with outriggers configuration. This range is designed according to the concept more than traditional, to allow it to work on tough sites, thus overcoming the restriction that aerial work platforms only can operate on slab ground. Equipped with AC drive motors that provide high efficiency and long running time, the maintenance-free AGM battery offers clean and quiet battery power for ultimate access flexibility. Fronteq crawler scissor lifts are setting a new standard within the industry.

8.0 m

Max. Working Height

0.98 m

Overall Width

200 ~ 230kg

Lift Capacity

    SCISSOR LIFTCrawler   |   With outriggers

    Model

    FS0610TL

    Dimensions

    Max. Working Height8.0 m
    A   Max. Platform Height6.0 m
    B   Overall Length (Stowed)2.27 m
    C   Overall Width0.98 m
    D   Overall Height (Guardrails unfolded)2.14 m
    Overall Height (Guardrails folded)1.67 m
    Platform Length (Stowed)1.80 m
    E    Max Horizontal Reach (Extension)0.89 m

    Weight

    Overall Weight1875 kg

    Performance

    Max. Platform Occupancy (Indoor)2
    Max. Platform Occupancy (Outdoor)2/1
    Lift Capacity (without outriggers deployed)200 kg
    Lift Capacity (with outriggers deployed)230 kg
    Lift Capacity (Extension deck)120 kg
    Driving HeightNo driving when lifting
    Gradealility30%
    Turning Radius (Inside)0
    Turning Radius (Outside)0
    Maximum Working Inclination Angle1.5°/2°

    Power

    Battery24V DC(4*12V115Ah)

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
