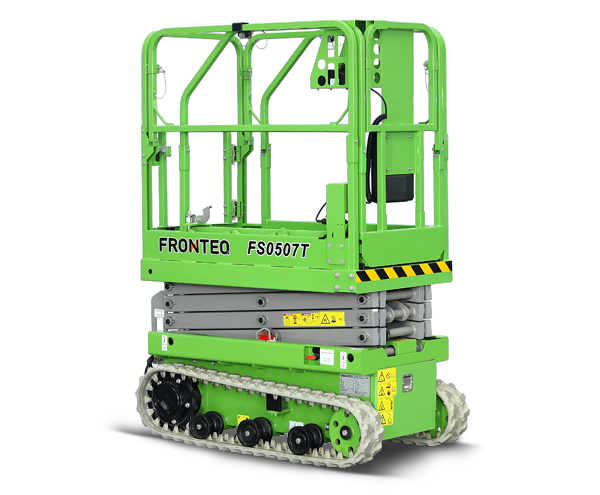

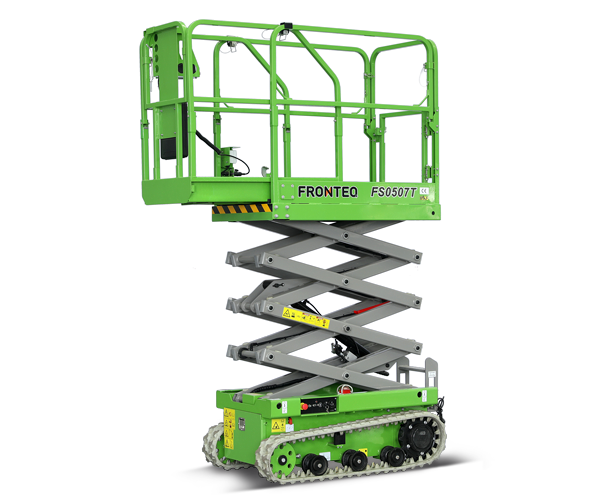

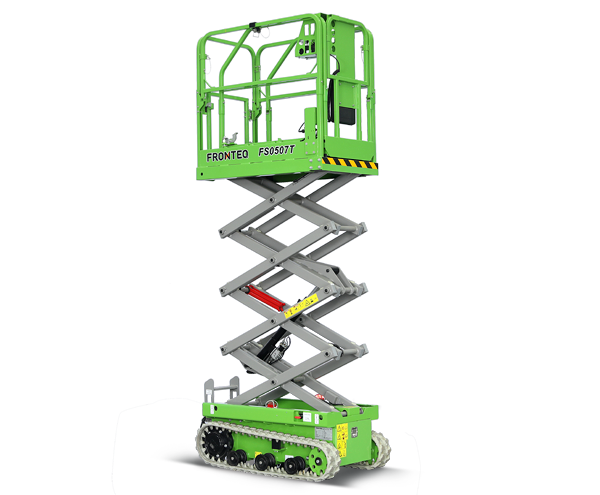

SCISSOR LIFT (Crawler | Without outriggers)
The crawler scissor lift is without outriggers configuration. This range is designed according to the concept more than traditional, to allow it to work on tough sites, thus overcoming the restriction that aerial work platforms only can operate on slab ground. Equipped with AC drive motors that provide high efficiency and long running time, the maintenance-free AGM battery offers clean and quiet battery power for ultimate access flexibility. Fronteq crawler scissor lifts are setting a new standard within the industry.
Max. Working Height
Overall Width
Lift Capacity
SCISSOR LIFTCrawler | Without outriggers | |
Model | FS0507T |
Dimensions | |
Max. Working Height | 6.6 m |
A Max. Platform Height | 4.6 m |
B Overall Length (Stowed) | 1.53 m |
C Overall Width | 0.83 m |
D Overall Height (Guardrails unfolded) | 2.07 m |
Overall Height (Guardrails folded) | 1.53 m |
Platform Length (Stowed) | 1.32m |
E Max Horizontal Reach (Extension) | 0.56 m |
Platform Width | 0.76m |
Weight | |
Overall Weight | 925 kg |
Performance | |
Max. Platform Occupancy (In door) | 1 |
Max. Platform Occupancy (Out door) | 0 |
Lift Capacity | 200 kg |
Lift Capacity (Extension deck) | 115 kg |
Driving Height | No driving when lifting |
Gradealility | 30% |
Turning Radius (Inside) | 0 |
Turning Radius (Outside) | 0 |
Maximum Working Inclination Angle | 1.7°/1.7° |
Power | |
Battery | 24V DC(2*12V115Ah) |
Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
Emergency stop
Emergency lowering
Overload protection
Lowering protection
Descent protection alarm
Tilt level protection
Safety arm
Motion alarm
Dual flashing beacons
Horn
Hour meter
Automatic braking system
Fault diagnosis system
Half height swing gate
Charger protection
Proportional control
Foldable guardrail
Manual braking release
Self-lubrication bearing
Overhead anti-collision device
Air line to platform
Pipe cradle pair
AC power on platform
Foot pedal switch
Platform LED work light
Customize color
Air switch
