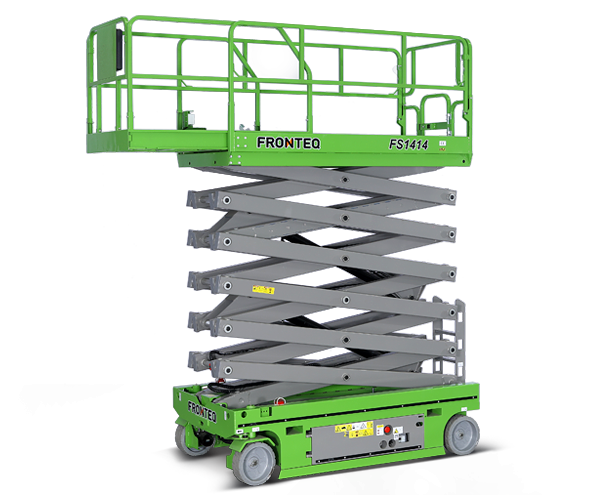

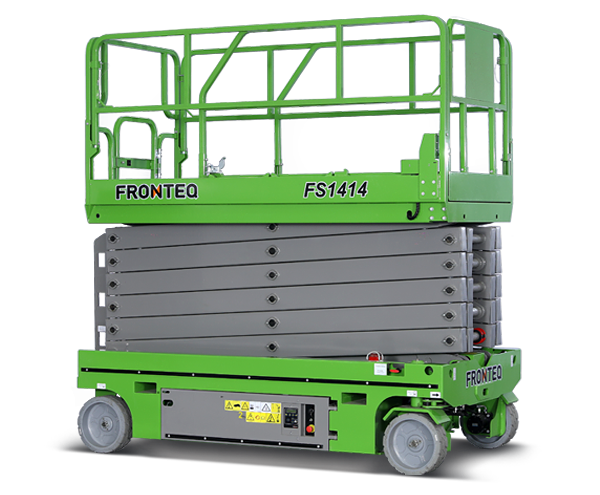

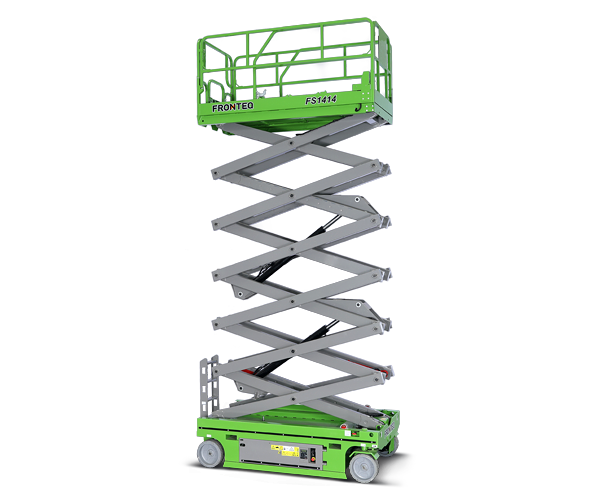

FS1414

SCISSOR LIFT (Slab | Hydraulic motor drive)

This range is designed for lifting people to carry out work at height in complete safety, the excellent performance lets operators easily manoeuvre around various worksites with firm, level surfaces. Equipped with maintenance-free AGM battery, an intelligent self-diagnostic system for quick troubleshooting, and swing-out component trays, which have fewer scheduled services and greatly reduce maintenance costs.

15.8 m

Max. Working Height

1.4 m

Overall Width

300kg

Lift Capacity

    SCISSOR LIFTSlab   |   Hydraulic motor drive

    Model

    FS1414

    Dimensions

    Max. Working Height15.8 m
    A   Max. Platform Height13.8 m
    B   Overall Length (Stowed)2.81 m
    C   Overall Width1.40 m
    D   Overall Height (Guardrails unfolded)2.78 m
    Overall Height (Guardrails folded)2.27m
    Platform Length (Stowed)2.61 m
    E   Max Horizontal Reach (Extension)0.9 m
    Platform Width1.2 m

    Weight

    Overall Weight3770 kg

    Performance

    Max. Platform Occupancy (In door)2
    Max. Platform Occupancy (Out door)0
    Lift Capacity300 kg
    Lift Capacity (Extension deck)120 kg
    Driving HeightFull height
    Gradealility25%
    Turning Radius (Inside)0
    Turning Radius (Outside)3.7 m
    Maximum Working Inclination Angle1.5°/3°
    Tyre Size38*13 cm

    Power

    Battery4*12V/145Ah

    Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
