SCISSOR LIFT
Slab

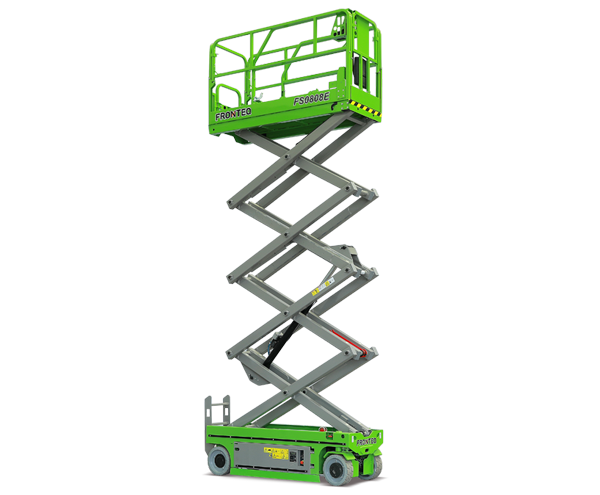

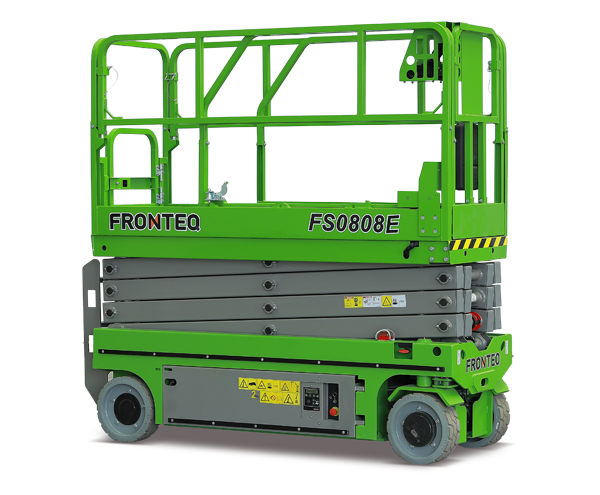

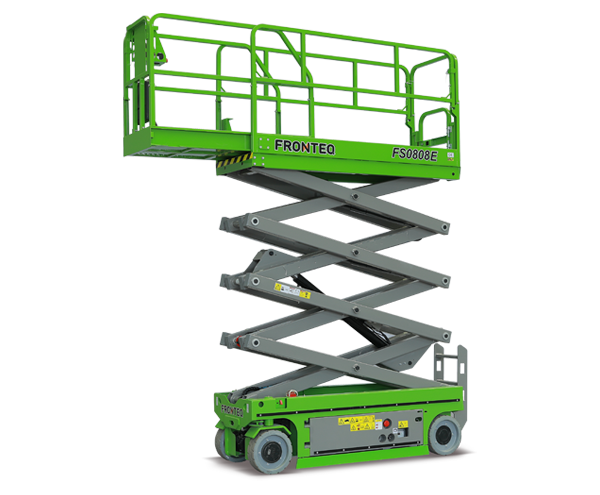

SCISSOR LIFT (Slab | Electric motor drive)
This range is designed for lifting people to carry out work at height in complete safety, the excellent performance lets operators easily manoeuvre around various worksites with firm, level surfaces. Equipped with maintenance-free AGM battery, an intelligent self-diagnostic system for quick troubleshooting, and swing-out component trays, which have fewer scheduled services and greatly reduce maintenance costs.
Max. Working Height
Overall Width
Lift Capacity
SCISSOR LIFTSlab | Electric motor drive | |
Model | FS0808E |
Dimensions | |
Max. Working Height | 9.9m |
A Max. Platform Height | 7.9m |
B Overall Length (Stowed) | 2.45 m |
C Overall Width | 0.81 m |
D Overall Height (Guardrails unfolded) | 2.31 m |
Overall Height (Guardrails folded) | 1.83 m |
Platform Length (Stowed) | 2.25 m |
E Max Horizontal Reach (Extension) | 0.90 m |
Platform Width | 0.8 m |
Weight | |
Overall Weight | 2150 kg |
Performance | |
Max. Platform Occupancy (In door) | 2 |
Max. Platform Occupancy (Out door) | 0 |
Lift Capacity | 230 kg |
Lift Capacity (Extension deck) | 120 kg |
Driving Height | Full height |
Gradealility | 30% |
Turning Radius (Inside) | 0m |
Turning Radius (Outside) | 2.35 m |
Maximum Working Inclination Angle | 1.5°/3° |
Tyre Size | 38*13 cm |
Power | |
Battery | 4*6V/220Ah |
Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
Emergency stop
Automatic pothole guard
Emergency lowering
Overload protection
Lowering protection
Descent protection alarm
Tilt level protection
Safety arm
Motion alarm
Dual flashing beacons
Horn
Drive at full height
Non-marking tyres
Forklift pocket
Hour meter
Automatic braking system
Fault diagnosis system
Half height swing gate
Charger protection
Proportional control
Foldable guardrail
Manual braking release
Self-lubrication bearing
Anti-collision plate
Overhead anti-collision device
Air line to platform
Pipe cradle pair
AC power on platform
Full height swing gate
Foot pedal switch
Platform LED work light
Customize color
Air switch
Fronteq (Changzhou) Machinery Co., Ltd. reserves the right to make any changes without notice concerning equipment, or specifications detailed on this web page or discontinue individual models. The configuration of equipment, delivered may differ slightly from those on the web page.
